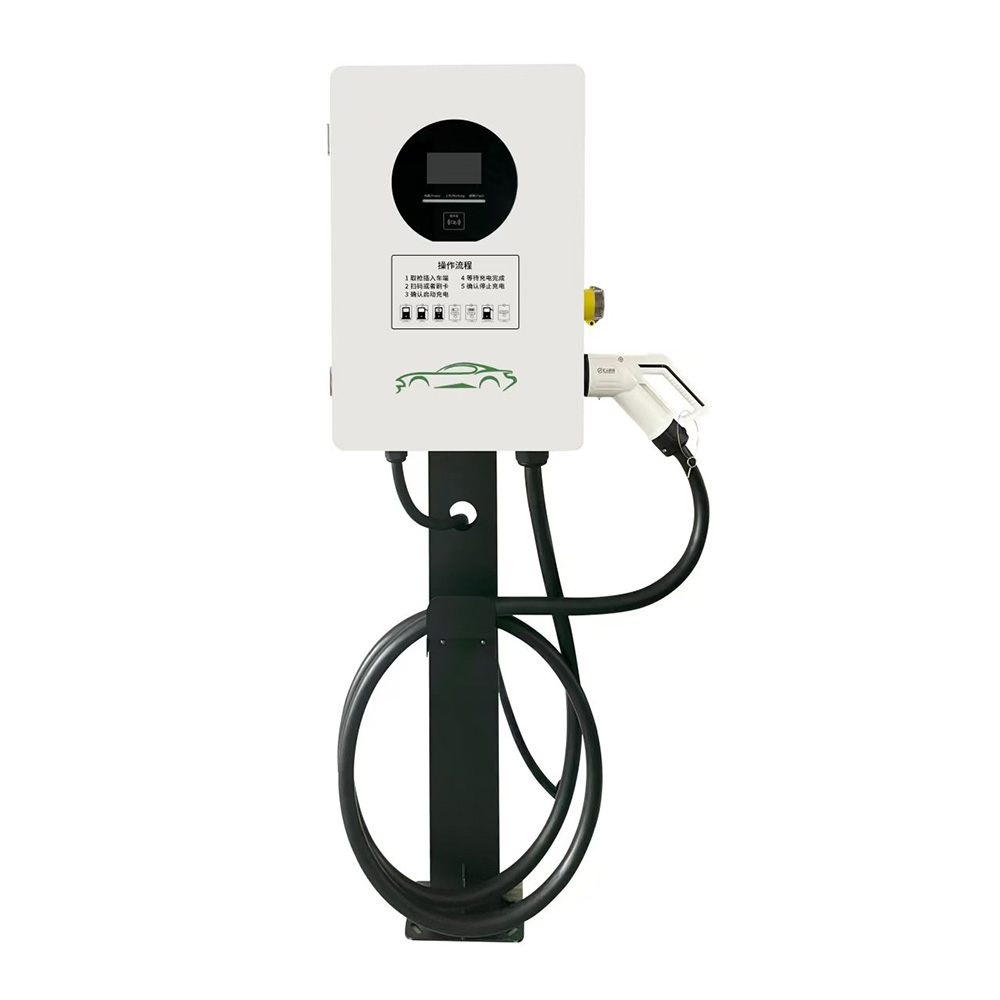

Mode4-EVSE-DC-Charger-Pile
FPG4B-B2 series
FPG4B-B2 series
Three power configurations are available: 20kw/30kw/40kw
Home or business
Wall hanging or column mounting
Line length customization
Multiple boot modes
Perfect security protection
Suitable for multiple scenarios
FPG4B-B2 series
FPG4B-B2 series
Product advantage
Passed CQC safety certification
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Product advantage
Passed CQC safety certification
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Equipment parameter

S/N

序號

Function Items

功能性項目

Parameter

參數

1

Model

型號

FPG4B-B2-J20-4.3-4

FPG4B-B2-J30-4.3-4

FPG4B-B2-J40-4.3-4

2

Rated Power

額定功率

20KW

30KW

40KW

3

Man-Machine Interface

人機界面

4.3“ Touch Screen LCD

4

Installation Mode

安裝方式

Wall Or Post Mounting

5

Routing Method

走線方式

Down In Down Out

6

Body Size（mm）

機身尺寸

650X460X220（WXHXD）

7

Outer Packaging Size（mm）

外包裝尺寸

910X610X455

8

Net Weight

凈重

43KG

45.5KG

48KG

9

Total Weight

總重量

47.24KG

49.74KG

52.24KG

10

Housing Material

外殼材質

Black Tempered Glass Panel Metal Material Body

11

Number Of Guns

槍數

Single Gun

12

Line Length

槍線長度

4m

13

Input Cable Specification

輸入線規格

6mm2

10mm2

16mm2

14

Electric Energy Measurement

電能計量

Level 2.0

15

Voltage Regulation Accuracy

穩壓精度

≤±0.5%

16

Current Regulation Accuracy

穩流精度

≤±1.0%

17

Pull-Out Force

拉拔力

45N~80N

18

Input Voltage

輸入電壓

AC 380V±20%

19

Input Frequency

輸入頻率

50Hz±10%

20

Output Voltage Range

輸出電壓范圍

DC 50V~1000V

21

Output Current Range

輸出電流范圍

0~60A

0~100A

0~134A

22

Constant Power Output Voltage Range

恒定功率輸出電壓范圍

DC 300~500V& DC 600~1000V

23

Starting Mode

啟動方式

Password、Plug And Charge

24

Charging Mode

充電模式

Full Power Charge

25

Reference Standard

參考標準

GB/T 18487.1-2015

26

Insulation Voltage

絕緣電壓

AC 2600V

27

Flame Retardant Rating

阻燃等級

UL94-V0

28

Class Of Protection

防護等級

IP54

29

Protection Function

保護功能

Short Circuit、Over Temperature、Over Current、Leakage、Under Voltage

30

Use Environment

使用環境

Indoor or Outdoor

31

Operation Temperature

工作溫度

-20℃~+50℃

32

Relative Humidity

相對濕度

5%~95% No Condensation

33

Altitude

海拔高度

≤2000m

34

Cooling Mode

冷卻方式

Air Cooling

35

Noise

噪音

≤65dB

36

MTBF

平均故障間隔時間

100000H
