Waterproof and dustproof
carry-on
High temperature failure protection
Bluetooth reservation charging
Authoritative certification
Suitable for 99.9% of vehicles
Lifetime technical service

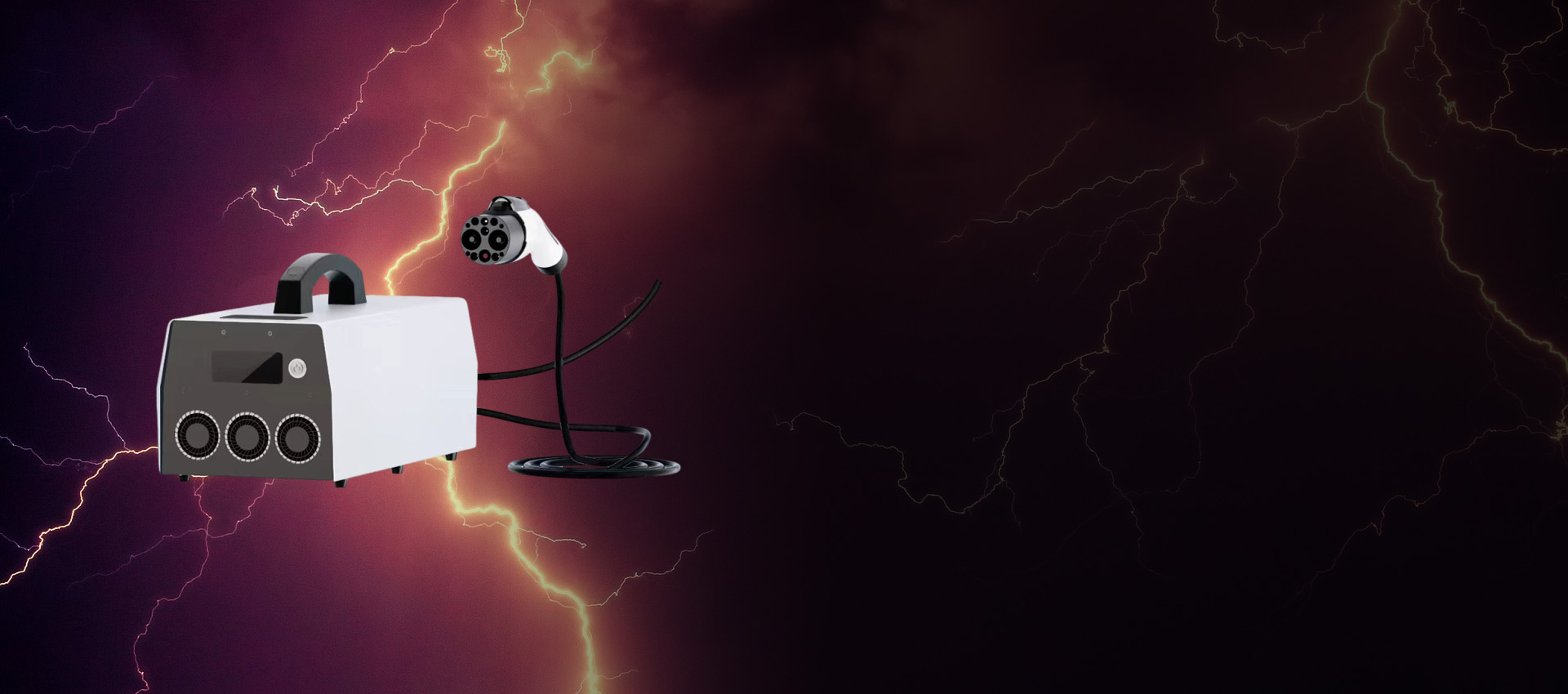

Mode4-EVSE-DC-Charger-Pile
FP-GZ-7BX series
FP-GZ-7BX series
Product advantage
Passed CQC safety certification
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Product advantage
Passed CQC safety certification
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Multiple protection
High temperature power failure
Suitable for 99.9% of models on the market
Waterproof and dustproof
Support Bluetooth reservation charging
Support 4G scanning code charges
Equipment parameter
S/N 序號 | Function Items 功能性項目 | Parameter 參數 |
1 | Model 型號 | FP-GZ-7BX |
2 | Input Voltage Range 輸入電壓范圍 | AC 85V~265V，Typical AC 220V |
3 | Input Frequency Range 輸入頻率范圍 | 47Hz~63Hz，Typical 50Hz |
4 | Output Power Range 輸出功率范圍 | 0~6600W |
5 | Output Voltage Range 輸出電壓范圍 | DC 200V~580V |
6 | Constant Power Voltage Range 恒定功率電壓范圍 | DC 330V~580V |
7 | Output Current Range 輸出電流范圍 | 0~20A |
8 | Power Factor 功率因數 | ≥0.99 |
9 | Peak Efficiency 峰值效率 | ≥95% |
10 | Reference Standards 參考標準 | GB/T 20234.1-2015，GB/T 20234.3-2015，GB/T 27930-2015，GB/T 18487.1-2015，NB/T 3300-2018 |
11 | Starting Mode 啟動方式 | One-Button Start And Stop；BT Appointment Start |
12 | Protection Function 保護功能 | Over Voltage、Under Voltage、Over Load、Short Circuit、Over Current 、Over Temperature、Leakage、Lighting |
13 | Noise 噪音 | ≤60dB |
14 | Cooling Mode 冷卻方式 | Forced Air Cooling |
15 | Class Of Protection 防護等級 | IP32 |
16 | Operation Temperature 工作溫度 | -30℃~+50℃（Intelligent Over Temperature Protection） |
17 | Relative Humidity 相對濕度 | 5%~95% |
18 | Altitude 海拔高度 | ≤2000m |
19 | Atmospheric Pressure 大氣壓力 | 70KPa~106Kpa |
20 | Applicable Environment 適用環境 | Indoor or Places Without Rain |
21 | Product Size（mm） 產品尺寸 | 425X225X185 |
22 | Package Size (mm) 包裝尺寸 | 520X420X270 |
23 | Equipment Weight 設備重量 | ≈12.2kg |
24 | Outer Packaging Gross Weight 外箱毛重 | ≈13.4kg |
25 | Line Length 槍線長度 | 3m |
26 | Input Line Length 進線長度 | 2m |
