Energy saving and high efficiency: Wide output voltage range, high output efficiency, low standby power consumption, reducing operating costs
Safe and reliable: with short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction: 7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes

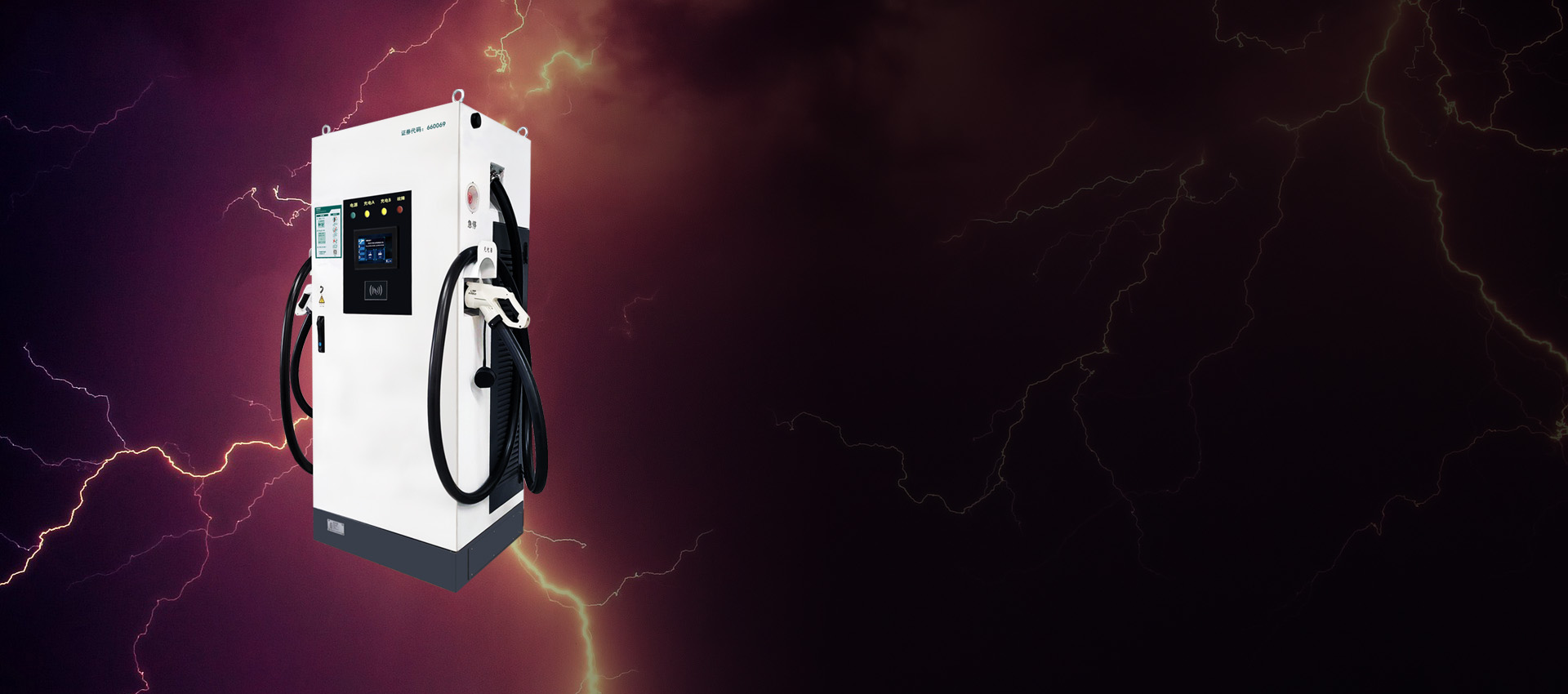

Mode4-EVSE-DC-Charger-Pile
FPDCO Series
FPDCO Series
Product advantage
Energy efficient:
Wide output voltage range, high output efficiency, low standby power consumption, reduce operating costs.
Safe and reliable:
With short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction:
7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes.
Wide output voltage range, high output efficiency, low standby power consumption, reduce operating costs.
Safe and reliable:
With short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction:
7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes.
Product advantage
Energy efficient:
Wide output voltage range, high output efficiency, low standby power consumption, reduce operating costs.
Safe and reliable:
With short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction:
7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes.
Wide output voltage range, high output efficiency, low standby power consumption, reduce operating costs.
Safe and reliable:
With short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction:
7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes.
Equipment parameter
S/N 序號 | Function Items 功能性項目 | Parameter 參數 | |||
1 | Model 型號 | FPDCO-40KW-2 | FPDCO-60KW-2 | FPDCO-80KW-2 | FPDCO-120KW-2 |
2 | Design Criteria 設計標準 | GB/T 18487、IEC 61851 | |||
3 | Input Voltage 輸入電壓 | AC 380V±15% | |||
4 | Frequency Range 頻率范圍 | 45Hz~66Hz | |||
5 | Power Factor 功率因數 | ≥0.99 | |||
6 | Harmonic Content 諧波含量 | ≤5% | |||
7 | Max, Efficiency 最高效率 | ≥96% | |||
8 | Output Voltage Range 輸出電壓范圍 | DC 200~1000V | |||
9 | Constant Power Output Voltage Range 恒定功率輸出電壓范圍 | DC 300~1000V | |||
10 | Output Power 輸出功率 | 40KW | 60KW | 80KW | 120KW |
11 | Max. Output Current 最大輸出電流 | 80A | 120A | 160A | 240A |
12 | Number Of Guns 槍數 | Double Gun | |||
13 | Line Length 充電線長 | 5m | |||
14 | Current Regulation Accuracy 穩流精度 | ≤±1.0% | |||
15 | Voltage Regulation Accuracy 穩壓精度 | ≤±0.5% | |||
16 | Output Current Tolerance 輸出電流誤差 | ≤±1.0% | |||
17 | Output Voltage Tolerance 輸出電壓誤差 | ≤±0.5% | |||
18 | Degree Of Unbalance 均流不平衡度 | ≤±0.5% | |||
19 | Communication Mode 通訊方式 | OCPP1.6J | |||
20 | Heat Dissipation Control 散熱控制 | Air Cooling | |||
21 | Class Of Protection 防護等級 | IP54 | |||
22 | BMS Auxiliary Power Supply 輔助電源 | 12V/24V | |||
23 | Reliability 可靠性 | 50000 | |||
24 | Dimension（WXDXH） 尺寸 | 650X425X1400 | 720X580X1700 | ||
25 | Routing Mode 走線方式 | Down Line | |||
26 | Operation Temperature 工作溫度 | -20℃~+50℃ | |||
27 | Storage Temperature 儲存溫度 | -20℃~+70℃ | |||
28 | Optional 選配項 | Cable Length 8m/10m | |||
