Energy saving and high efficiency: Wide output voltage range, high output efficiency, low standby power consumption, reducing operating costs
Safe and reliable: with short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction: 7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes

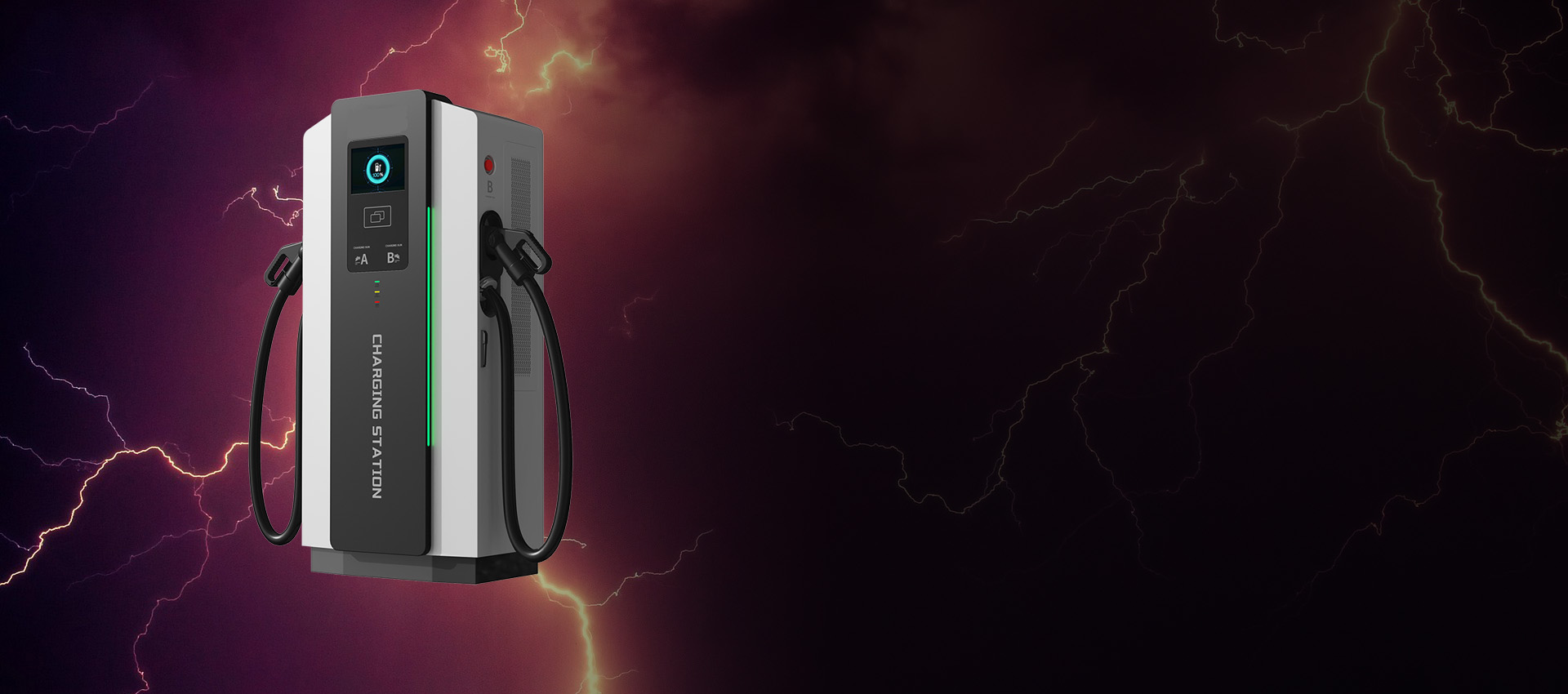

Mode4-EVSE-DC-Charger-Pile
FPDCN series
FPDCN series
Product advantage
Energy efficient:
Wide output voltage range, high output efficiency, low standby power consumption, reduce operating costs.
Safe and reliable:
With short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction:
7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes.
Wide output voltage range, high output efficiency, low standby power consumption, reduce operating costs.
Safe and reliable:
With short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction:
7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes.
Product advantage
Energy efficient:
Wide output voltage range, high output efficiency, low standby power consumption, reduce operating costs.
Safe and reliable:
With short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction:
7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes.
Wide output voltage range, high output efficiency, low standby power consumption, reduce operating costs.
Safe and reliable:
With short-circuit, overheating, emergency stop and other multiple protection functions; Galvanized steel plate + anti-rust spraying double shell protection design; IP54 protection grade; Unique air duct design, low failure rate.
Intelligent interaction:
7 inch color touch screen, easy to operate; Ethernet, 4G various communication methods; Code scanning, card swiping, VIN multiple starting modes; Automatic charging, charging according to the power and other charging modes.
Equipment parameter
S/N 序號 | Function Items 功能性項目 | Parameter 參數 | |||||||||
1 | Model 型號 | FPDCN-40KW-2 | FPDCN-60KW-2 | FPDCN-80KW-2 | FPDCN-120KW-2 | FPDCN-160KW-2 | FPDCN-180KW-2 | FPDCN-240KW-2 | FPDCN-360KW-2 | ||
2 | Design Criteria 設計標準 | GB/T 18487、IEC 61851 | |||||||||
3 | Input Voltage 輸入電壓 | AC 380V±15% | |||||||||
4 | Frequency Range 頻率范圍 | 45Hz~66Hz | |||||||||
5 | Power Factor 功率因數 | ≥0.99 | |||||||||
6 | Harmonic Content 諧波含量 | ≤5% | |||||||||
7 | Max, Efficiency 最高效率 | ≥96% | |||||||||
8 | Output Voltage Range 輸出電壓范圍 | DC 200~1000V | |||||||||
9 | Constant Power Output Voltage Range 恒定功率輸出電壓范圍 | DC 300~1000V | |||||||||
10 | Output Power 輸出功率 | 40KW | 60KW | 80KW | 120KW | 160KW | 180KW | 240KW | 360KW | ||
11 | Max. Output Current 最大輸出電流 | 80A | 120A | 160A | 240A | 320 | 360 | 480 | 720 | ||
12 | Number Of Guns 槍數 | Double Gun | |||||||||
13 | Line Length 充電線長 | 5m | |||||||||
14 | Current Regulation Accuracy 穩流精度 | ≤±1.0% | |||||||||
15 | Voltage Regulation Accuracy 穩壓精度 | ≤±0.5% | |||||||||
16 | Output Current Tolerance 輸出電流誤差 | ≤±1.0% | |||||||||
17 | Output Voltage Tolerance 輸出電壓誤差 | ≤±0.5% | |||||||||
18 | Degree Of Unbalance 均流不平衡度 | ≤±0.5% | |||||||||
19 | Communication Mode 通訊方式 | OCPP1.6J | |||||||||
20 | Heat Dissipation Control 散熱控制 | Air Cooling | |||||||||
21 | Class Of Protection 防護等級 | IP54 | |||||||||
22 | BMS Auxiliary Power Supply 輔助電源 | 12V/24V | |||||||||
23 | Reliability 可靠性 | 50000 | |||||||||
24 | Dimension（WXDXH） 尺寸 | 650X425X1400 | 720X580X1700 | 810X762X1750 | |||||||
25 | Routing Mode 走線方式 | Down Line | |||||||||
26 | Operation Temperature 工作溫度 | -20℃~+50℃ | |||||||||
27 | Storage Temperature 儲存溫度 | -20℃~+70℃ | |||||||||
28 | Optional 選配項 | Cable Length 8m/10m | |||||||||
