Mode3 EVSE AC Charger Pile
Elf Series
Elf Series
Four power configurations are available: 3.5kw/7kw/11kw/22kw
Support home or business

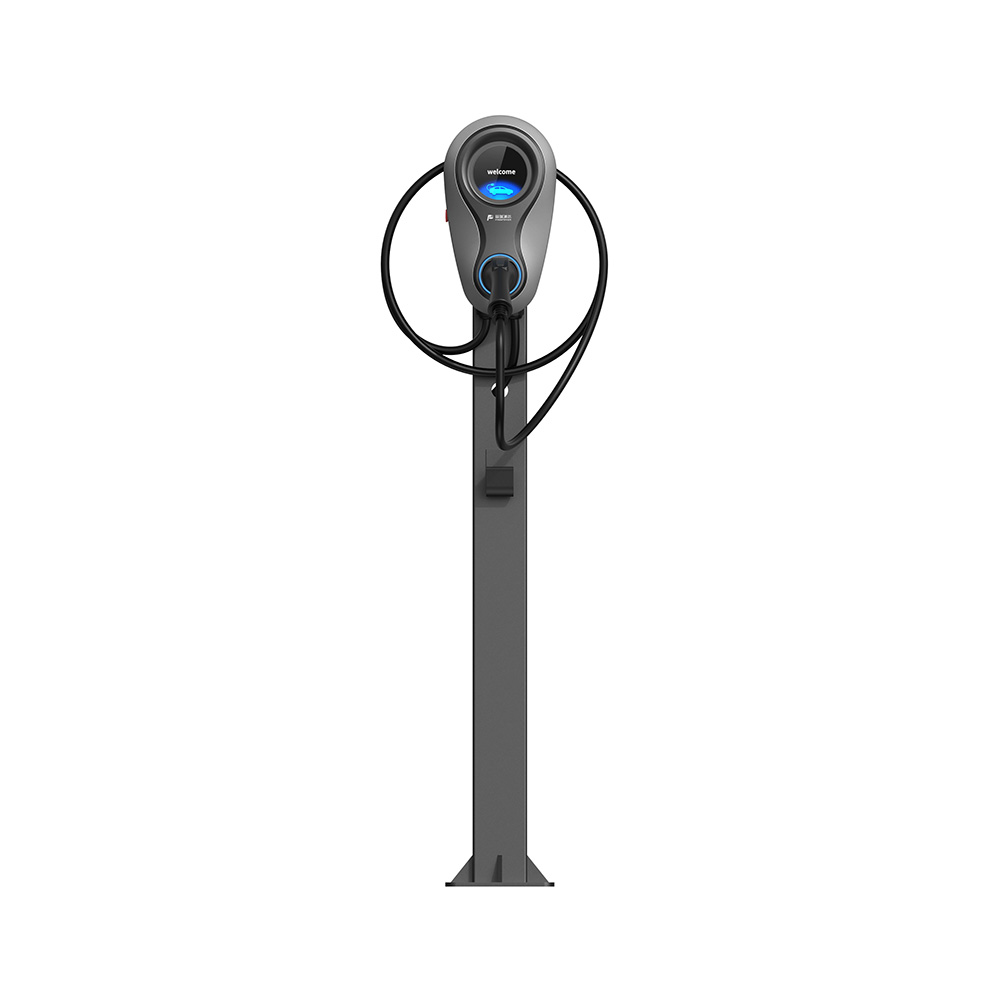

Supports wall hanging or column installation
Line length customization
Support color screen display and voice broadcast

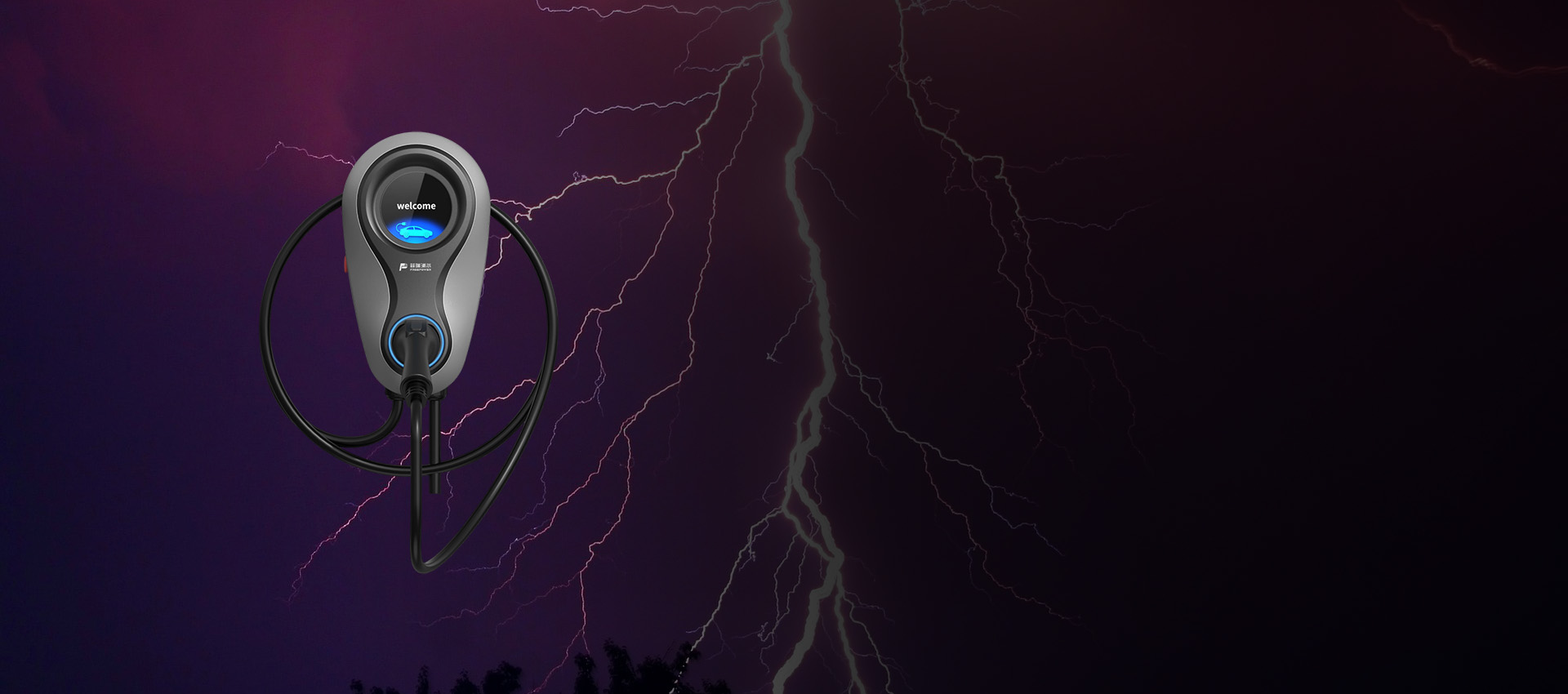

Multiple protection
Suitable for a variety of locations
Elf Series
Elf Series
Product advantage
For charging electric vehicles with on-board chargers, mainly suitable for large and small electric vehicle charging stations; All kinds of public places with electric vehicle parking Spaces, such as urban residential areas, shopping plazas, electric power business places, etc.; High-speed service areas, stations, docks and other transportation hub areas.
Product advantage
For charging electric vehicles with on-board chargers, mainly suitable for large and small electric vehicle charging stations; All kinds of public places with electric vehicle parking Spaces, such as urban residential areas, shopping plazas, electric power business places, etc.; High-speed service areas, stations, docks and other transportation hub areas.
Equipment parameter

S/N

Functional Items

功能性項目

Parameter

參數

Model

型號

Elf 22

Elf 11

Elf 07

Elf 35

1

Input Cable Structure

輸入電纜結構

5x6mm2&1m

5x2.5mm2&1m

3x6mm2&1m

3x2.5mm2&1m

2

Weight

重量

4.3kg

3.8kg

4.0kg

3.5kg

3

Input Voltage

輸入電壓

400V±15%

400V±15%

230V±15%

230V±15%

4

Output Voltage

輸出電壓

400V±15%

400V±15%

230V±15%

230V±15%

5

Frequency

頻率

50/60Hz

50/60Hz

50/60Hz

50/60Hz

6

Rated Output Current

額定輸出電流

32A

16A

32A

16A

7

Rated Output Power

額定輸出功率

22KW

11KW

7KW

3.5KW

8

Insulation Resistance

絕緣電阻

DC 500V≥10M?

9

Dielectric Strength

介電強度

DC 2800V≤10mA

10

Overcurrent Protection

過流保護

35.2A

18A

35.2A

18A

11

Grounding Protection

接地保護

√

12

Adhesion Protection

附著力保護

√

13

Operating Temperature

工作溫度

-25℃~+50℃

14

Storage Temperature

儲存溫度

-40℃~+70℃

15

Ambient Humidity

環境濕度

≤95% non-condensing

16

Protection Class

防護等級

IP55

17

Display Method

顯示方法

2.5’’ LCD & LED Indicator Light

18

Start-Stop Charging

啟停充電

Instant Charging & Swipe Card Charging & App Charging

19

Charging Cable Length

充電電纜長度

5m

20

Installation Mode

安裝方式

Wall-Mounted or Column

21

Product Size

產品尺寸

206X368X153（WXHXD）

22

Load Balancing（optional）

負載平衡  （選配）

Support Home DLB Function
