Mode4-EVSE-DC-Charger-Pile

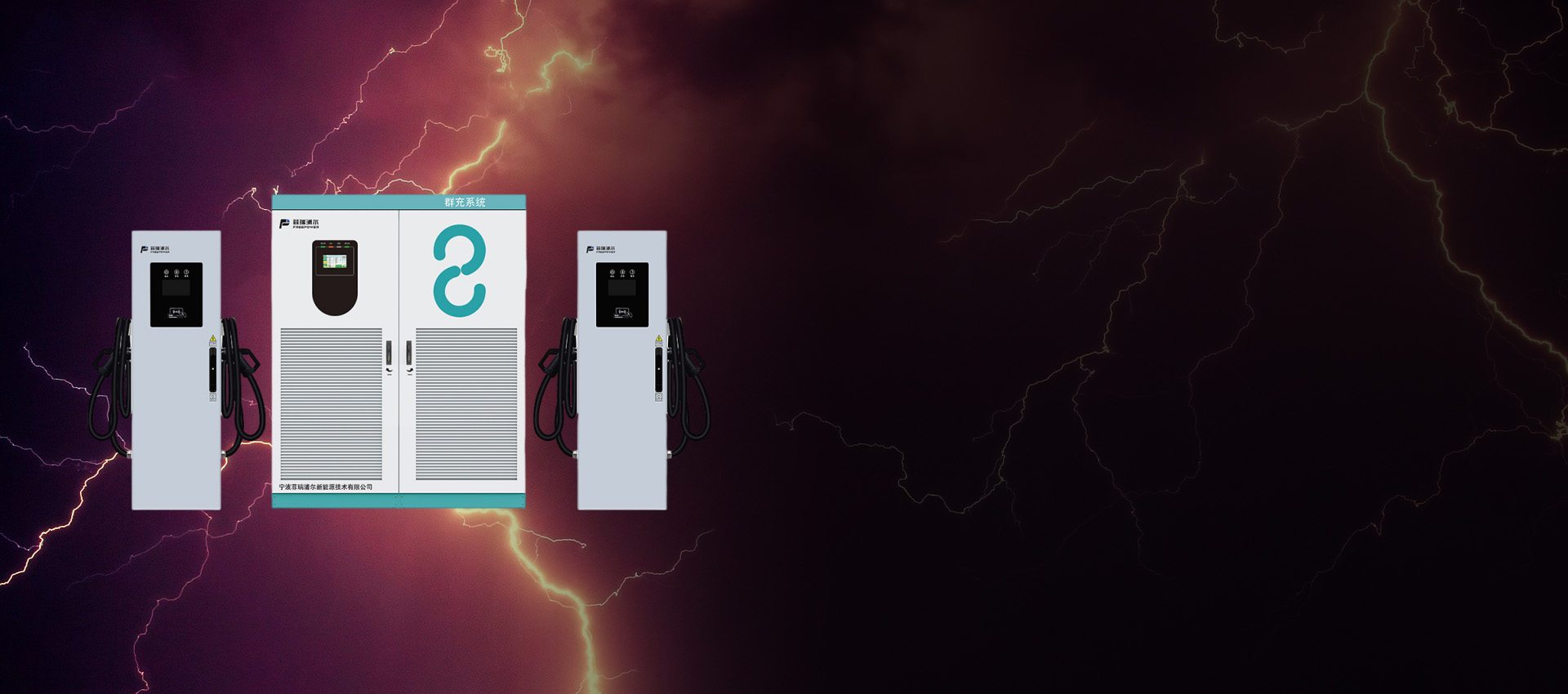

Dc split charging system
Dc split charging system
Safe and reliable: with multiple protection functions, more stable charging
Elegant design: 240-720KW charging pile is modular, easy to maintain, simple and efficient
Flexible and efficient: flexible power distribution algorithm, flexible deployment, effectively improve the power sale rate, module use efficiency
Multi-gun group charging: The group charging system supports 12 guns online at the same time
Reduce noise: Split design, effectively reduce noise
Efficient output: Fast charging, support 360-800KW super fast charging

Dc split charging system
Product advantage
Product advantage
Equipment parameter

S/N

序號

Function Items

功能性項目

Parameter

參數

1

Model

型號

FPAD360K-6

FPAD480K-8

FPAD600K-10

FPAD720K-12

2

Rated Power

額定功率

360KW

480KW

600KW

720KW

3

Output Loop

輸出回路

6

8

10

12

4

Input Loop

輸入回路

Double Channel

5

Overall Size（mm）

外形尺寸

900X800X2100

1700X800X2100

1700X800X2100

1700X800X2200

6

Input Voltage

輸入電壓

AC 380V±20%

7

Input Frequency

輸入頻率

50Hz±10%

8

Output Voltage Range

輸出電壓范圍

DC 200~1000V

9

Max. Output Current Of Each Channel

每路最大輸出電流

250A

10

Constant Power Output Voltage Range

恒定功率輸出電壓范圍

DC 300~1000V

11

Max, Efficiency

最高效率

≥95%（50%~100% Rated Output Power）

12

Power Factor

功率因數

≥0.99（50%~100% Rated Output Power）

13

Voltage Regulation Accuracy

穩壓精度

≤±0.5%

14

Current Regulation Accuracy

穩流精度

≤±1.0%（20%~100% Rated Output Power）

15

Degree of unbalance in the current equalization

均流不平衡度

≤±5%

16

Ripple Crest Peak

紋波峰峰值

≤1%

17

Class Of Protection

防護等級

IP54

18

Use Environment

使用環境

Indoor or Outdoor

19

Noise

噪音

≤65dB

20

Heat Dissipation Mode

散熱方式

Forced Air Cooling

21

THD

總諧波失真

≤5%（50%~100% Rated Output Power）

22

Communication With The Terminal Cabinet

與終端柜通信方式

CAN Communication

23

Operation Temperature

運行溫度

-20℃~+50℃

24

Relative Humidity

相對濕度

5%~95%

25

Altitude

海拔高度

≤2000m

26

Installation Mode

安裝方式

Floor Mount

S/N

序號

Function Items

功能性項目

Parameter

參數

1

Model

型號

FPDC60/120K

2

Output Voltage Range

輸出電壓范圍

DC 200~1000V

3

Number Of Guns

槍數

Single/Double Gun

4

Max. Output Current Of Each Channel

每路最大輸出電流

250A

5

Constant Power Output Voltage Range

恒定功率輸出電壓范圍

DC 300~1000V

6

Rated Power

額定功率

60KW

7

Max. Output Power

最大輸出功率

250KW

8

Auxiliary Power Supply

輔助電源

DC 12V

9

Electric Energy Measurement

電能計量

Level 1.0

10

Man-Machine Interface

人機界面

7“ Touch Screen LCD+LED Indicator Light

11

Charging Mode

充電模式

Automatic Charging、By Time、By Power、By Amount

12

Starting Mode

啟動方式

Swipe Card、Scan Code、Password、VIN

13

Protection Function

保護功能

Short Circuit、Over Temperature、Over Current、Leakage、Under Voltage、Over Voltage

14

Cloud Platform

云平臺

Cloud Fast Charging、Weijing Cloud、DAK Cloud、E-Charging

15

Charging Mode

充電模式

Full Power Charge、AB Charge

16

Insulation Resistance

絕緣電阻

≥20M?

22

Communication With The Rectifier Cabinet

與整流柜通信方式

CAN Communication

18

Networking Mode

聯網方式

Ethernet、4G

19

Class Of Protection

防護等級

IP54

20

Operation Temperature

運行溫度

-20℃~+50℃

21

Storage Temperature

儲存溫度

-40℃~+70℃

22

Relative Humidity

相對濕度

5%~95%

23

Altitude

海拔高度

≤2000m

24

Installation Mode

安裝方式

Floor Mount

25

Size（mm）

尺寸

Single Gun Terminal：400X200X1610（WXDXH）

Double Gun Terminal：550X230X1610（WXDXH）
