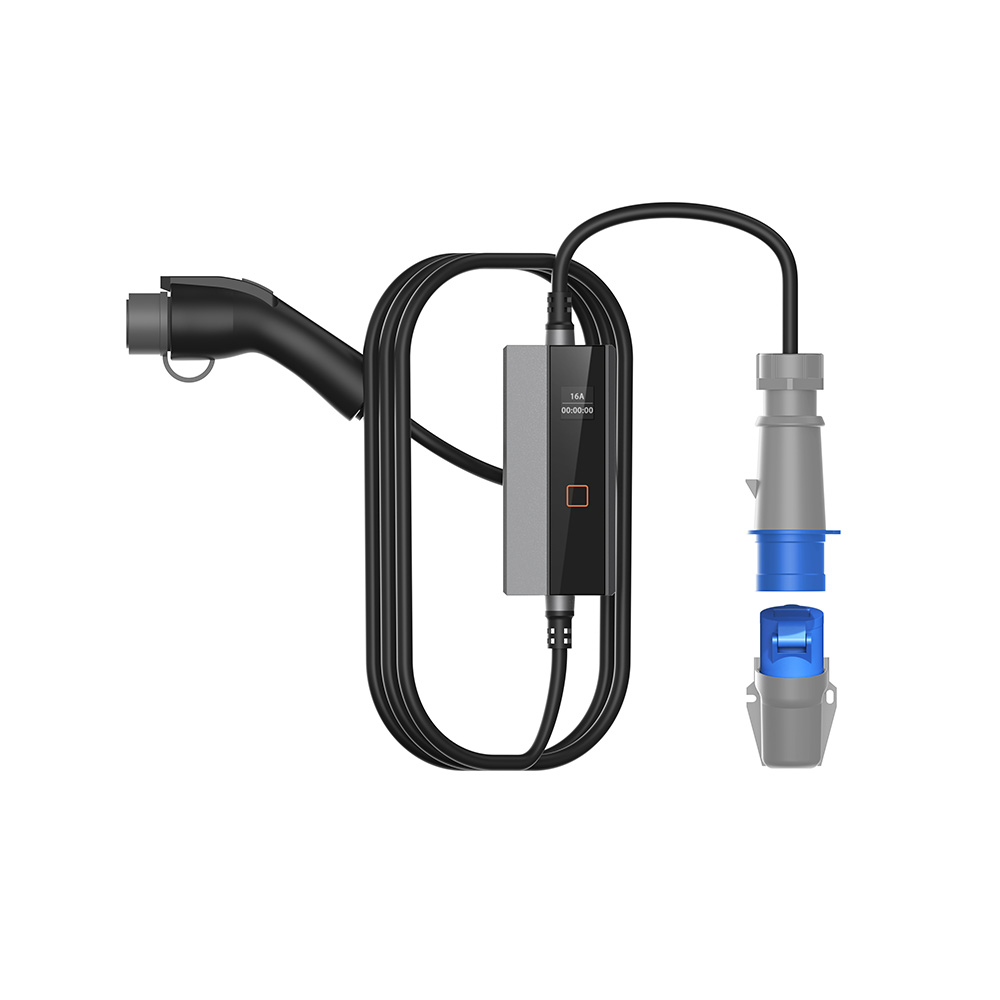

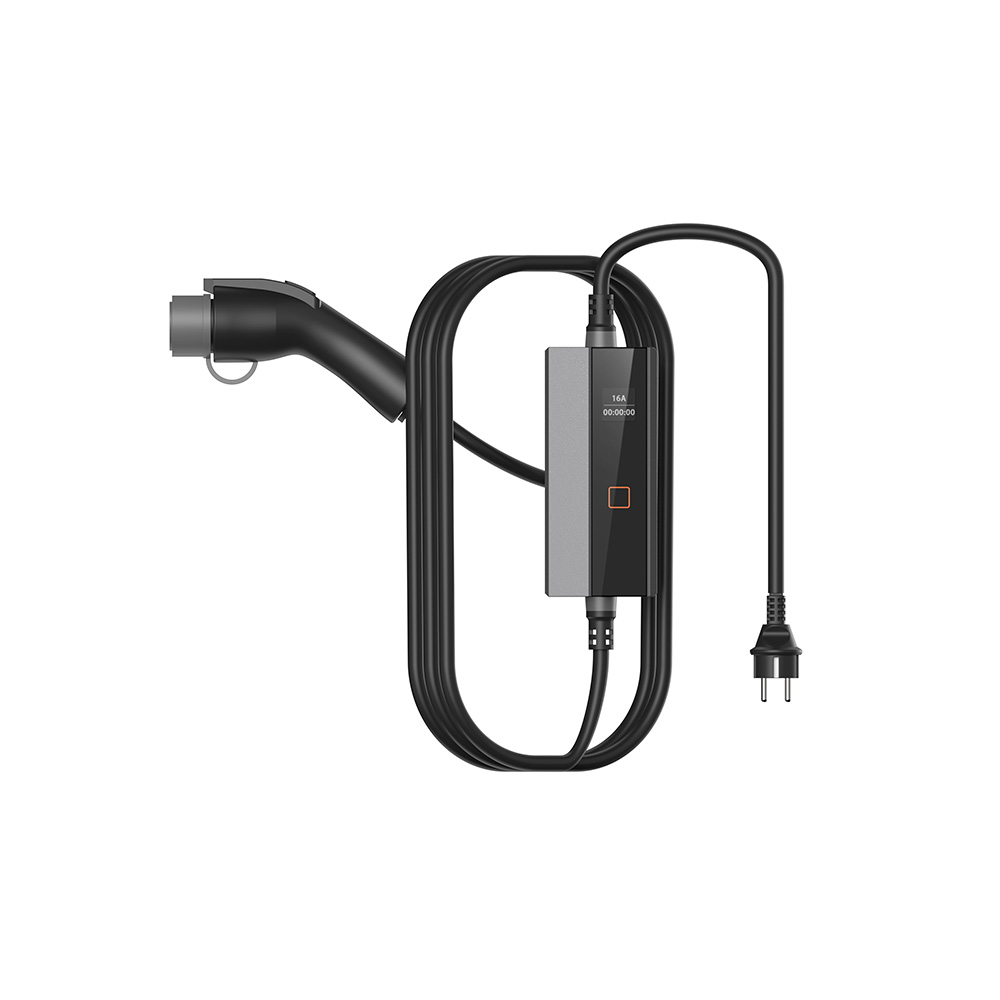

Mode2-EVSE-AC-Portable-Charger
S-Box series
S-Box series
Two power configurations are available, 3.5kw/7kw
Light and portable
carry-on
Line length customization
Reservation charging
Multiple protection
Color screen display
S-Box series
S-Box series
S-Box series
Product advantage

High portability and flexibility

High Protection

High pressure housing

Four speed current free switching

Intelligent dualtemperature control function

Product advantage

High portability and flexibility

High Protection

High pressure housing

Four speed current free switching

Intelligent dualtemperature control function

Equipment parameter

Model

型號

S-Box 35

S-Box 07













Input&Output

輸入&輸出





















Rated Input Voltage

額定輸入電壓

AC 230V

AC 230V

Rated Input Frequency

額定輸入頻率

50Hz

50Hz

Rated Output Voltage

額定輸出電壓

AC 230V

AC 230V

Input Plug

輸入插頭

1P+N+PE 16A

1P+N+PE 32A

Rated Output Frequency

額定輸出頻率

50Hz

50Hz

Max. Output Current

最大輸出電流

16A

32A

Adjustable Current

可調(diào)電流

16A/13A/10A/8A

32A/24A/16A/10A

Max. Output Power

最大輸出功率

3.5KW

7KW

Residual Current Detection

剩余電流檢測裝置

AC 30 mA/+DC 6mA

AC 30 mA/+DC 6mA

Cable length

線纜長度

5m

5m

Connector Type

(IEC62196-2)

接口類型

Type 2

Type 2


User Interface & Control

用戶界面和控制



Screen

顯示屏

1.54 inch

1.54 inch

Start method

啟動方式

Direct/Reservation

Direct/Reservation







Working Environment

工作環(huán)境









Working temperature

工作溫度

-20℃-+50℃

-20℃-+50℃

Storage temperature

儲存溫度

-30℃-+85℃

-30℃-+85℃

Humidity

濕度

5%-95%

5%-95%

Altitude

海拔高度

≤ 2000 m

≤ 2000 m

IP

防護等級

IP67

IP67









Safety

安全













Mounting

安裝方式

IC-CPD

IC-CPD

Size(H*W*D)

產(chǎn)品尺寸

224*90*48（mm）

224*90*48（mm）

Over/Under Voltage

過壓/欠壓保護

P

P

Over current

過流保護

P

P

Over Temperature

過溫保護

P

P

Ground protection

接地保護

P

P

Leakage protection

漏電保護

P

P





Adapter plug

適配插頭
