Safe and reliable: with multiple protection functions, more stable charging
Wide adaptability: suitable for 99% of new national standard electric vehicles
Strong compatibility: compatible with a number of cloud platforms, fast access to operation, support a number of mainstream charging modules
Widely used: suitable for residential areas, office buildings, shopping malls, hotels and other parking lot use
No need for debugging: debugging has been completed before the factory, power can be used directly
High efficiency output: voltage range 200-1000V, constant power range 300-1000V

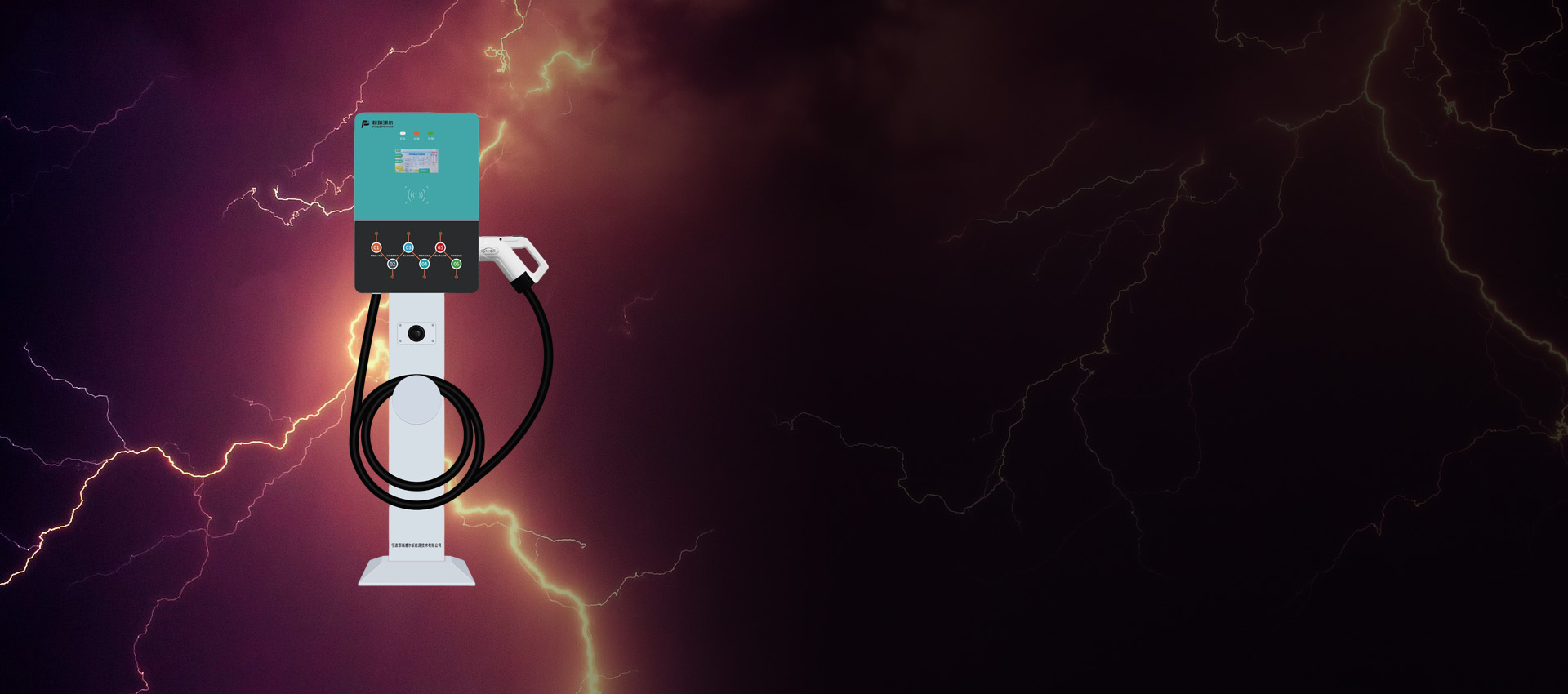

Mode4-EVSE-DC-Charger-Pile
FPDC-L 系列
FPDC-L 系列
產品優勢
產品優勢
設備參數
序號 | 功能性項目 | 參數 | |||
1 | 型號 | FPDC20K-L | FPDC30K-L | FPDC40K-L | |
2 | 額定功率 | 20KW | 30KW | 40KW | |
3 | 單槍最大輸出電流 | 67A | 100A | 125A | |
4 | 重量 | ≈45kg | ≈62kg | ≈66kg | |
5 | 設計標準 | GB/T 18487-2015 | |||
6 | 槍數 | Single Gun | |||
7 | 機身尺寸 | 450X650X216（WXHXD） | 580X780X206（WXHXD） | ||
8 | 人機界面 | 7“ Touch Screen LCD | |||
9 | 聯網方式 | Ethernet、4G(optional) | |||
10 | 充電模式 | Automatic Charging、By Time、By Power、By Amount | |||
11 | 啟動方式 | Swipe Card、Wechat Scan Code、VIN、Password | |||
12 | 云平臺 | Cloud Fast Charging、Weijing Cloud、DAK Cloud、E-Charging | |||
13 | 保護功能 | Short Circuit、Over Current 、Over Temperature、Leakage、Under Voltage、Over Voltage | |||
14 | 輸入電壓 | AC 380V±20% | |||
15 | 輸入頻率 | 50Hz±10% | |||
16 | 槍線長度 | 5m | |||
17 | 輸出電壓范圍 | DC 200~1000V | |||
18 | 輸出電壓誤差 | ≤±0.5% | |||
|
